A component to handle switches More...

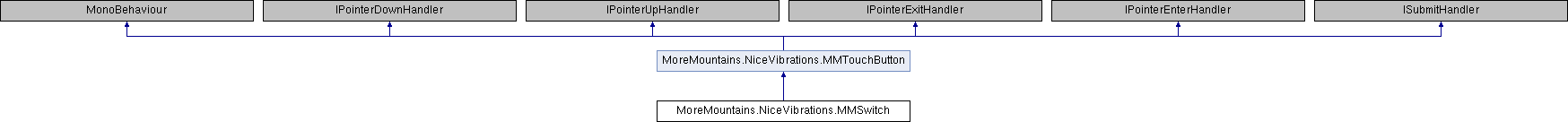

Inheritance diagram for MoreMountains.NiceVibrations.MMSwitch:

Public Types
enum	SwitchStates { SwitchStates.Off, SwitchStates.On }
	the possible states of the switch More...

Public Types inherited from MoreMountains.NiceVibrations.MMTouchButton
enum	ButtonStates { ButtonStates.Off, ButtonStates.ButtonDown, ButtonStates.ButtonPressed, ButtonStates.ButtonUp, ButtonStates.Disabled }

Public Member Functions
virtual void	InitializeState ()

virtual void	SwitchState ()
	Use this method to go from one state to the other More...

Public Member Functions inherited from MoreMountains.NiceVibrations.MMTouchButton
virtual void	OnPointerDown (PointerEventData data)
	Triggers the bound pointer down action More...

virtual void	OnPointerUp (PointerEventData data)
	Triggers the bound pointer up action More...

virtual void	OnPointerPressed ()
	Triggers the bound pointer pressed action More...

virtual void	OnPointerEnter (PointerEventData data)
	Triggers the bound pointer enter action when touch enters zone More...

virtual void	OnPointerExit (PointerEventData data)
	Triggers the bound pointer exit action when touch is out of zone More...

virtual void	DisableButton ()

virtual void	EnableButton ()

virtual void	OnSubmit (BaseEventData eventData)

Public Attributes
Image	SwitchKnob
	a SpriteReplace to represent the switch knob More...

SwitchStates	InitialState = SwitchStates.Off
	the state the switch should start in More...

Transform	OffPosition

Transform	OnPosition

AnimationCurve	KnobMovementCurve = AnimationCurve.Linear(0f, 0f, 1f, 1f)

float	KnobMovementDuration = 0.2f

UnityEvent	SwitchOn
	the methods to call when the switch is turned on More...

UnityEvent	SwitchOff
	the methods to call when the switch is turned off More...

Public Attributes inherited from MoreMountains.NiceVibrations.MMTouchButton
UnityEvent	ButtonPressedFirstTime
	The method(s) to call when the button gets pressed down. More...

UnityEvent	ButtonReleased
	The method(s) to call when the button gets released. More...

UnityEvent	ButtonPressed
	The method(s) to call while the button is being pressed. More...

Sprite	DisabledSprite

Sprite	PressedSprite

Sprite	HighlightedSprite

bool	PressedChangeColor = false

Color	PressedColor = Color.white

bool	LerpColor = true

float	LerpColorDuration = 0.2f

AnimationCurve	LerpColorCurve

float	PressedOpacity = 1f
	the new opacity to apply to the canvas group when the button is pressed More...

float	IdleOpacity = 1f

float	DisabledOpacity = 1f

float	PressedFirstTimeDelay = 0f

float	ReleasedDelay = 0f

float	BufferDuration = 0f

Animator	Animator

string	IdleAnimationParameterName = "Idle"

string	DisabledAnimationParameterName = "Disabled"

string	PressedAnimationParameterName = "Pressed"

bool	MouseMode = false
	If you set this to true, you'll need to actually press the button for it to be triggered, otherwise a simple hover will trigger it (better for touch input). More...

Protected Member Functions
override void	Initialization ()
	On init, we set our current switch state More...

override void	Update ()
	Every frame, if the touch zone is pressed, we trigger the OnPointerPressed method, to detect continuous press More...

Protected Member Functions inherited from MoreMountains.NiceVibrations.MMTouchButton
virtual void	Awake ()
	On Start, we get our canvasgroup and set our initial alpha More...

virtual void	LateUpdate ()
	At the end of every frame, we change our button's state if needed More...

virtual void	InvokePressedFirstTime ()

virtual void	InvokeReleased ()

virtual void	ResetButton ()
	Resets the button's state and opacity More...

virtual void	OnEnable ()
	OnEnable, we reset our button state More...

virtual void	SetOpacity (float newOpacity)

virtual void	UpdateAnimatorStates ()

virtual float	Remap (float x, float A, float B, float C, float D)

Protected Attributes
float	_knobMovementStartedAt = -50f

Protected Attributes inherited from MoreMountains.NiceVibrations.MMTouchButton
bool	_zonePressed = false

CanvasGroup	_canvasGroup

float	_initialOpacity

Animator	_animator

Image	_image

Sprite	_initialSprite

Color	_initialColor

float	_lastClickTimestamp = 0f

Selectable	_selectable

float	_lastStateChangeAt = -50f

Color	_imageColor

Color	_fromColor

Color	_toColor

Properties
SwitchStates	CurrentSwitchState `[get, set]`
	the current state of the switch More...

Properties inherited from MoreMountains.NiceVibrations.MMTouchButton
bool	ReturnToInitialSpriteAutomatically `[get, set]`

ButtonStates	CurrentState `[get, protected set]`
	the current state of the button (off, down, pressed or up) More...

Detailed Description

A component to handle switches

Member Enumeration Documentation

◆ SwitchStates

enum MoreMountains.NiceVibrations.MMSwitch.SwitchStates

strong

the possible states of the switch

Enumerator
Off
On

Member Function Documentation

◆ Initialization()

override void MoreMountains.NiceVibrations.MMSwitch.Initialization ( )

protectedvirtual

On init, we set our current switch state

Reimplemented from MoreMountains.NiceVibrations.MMTouchButton.

◆ InitializeState()

virtual void MoreMountains.NiceVibrations.MMSwitch.InitializeState ( )

virtual

◆ SwitchState()

virtual void MoreMountains.NiceVibrations.MMSwitch.SwitchState ( )

virtual

Use this method to go from one state to the other

◆ Update()

override void MoreMountains.NiceVibrations.MMSwitch.Update ( )

protectedvirtual

Every frame, if the touch zone is pressed, we trigger the OnPointerPressed method, to detect continuous press

Reimplemented from MoreMountains.NiceVibrations.MMTouchButton.

Member Data Documentation

◆ _knobMovementStartedAt

float MoreMountains.NiceVibrations.MMSwitch._knobMovementStartedAt = -50f

protected

◆ InitialState

SwitchStates MoreMountains.NiceVibrations.MMSwitch.InitialState = SwitchStates.Off

the state the switch should start in

◆ KnobMovementCurve

AnimationCurve MoreMountains.NiceVibrations.MMSwitch.KnobMovementCurve = AnimationCurve.Linear(0f, 0f, 1f, 1f)

◆ KnobMovementDuration

float MoreMountains.NiceVibrations.MMSwitch.KnobMovementDuration = 0.2f

◆ OffPosition

Transform MoreMountains.NiceVibrations.MMSwitch.OffPosition

◆ OnPosition

Transform MoreMountains.NiceVibrations.MMSwitch.OnPosition

◆ SwitchKnob

Image MoreMountains.NiceVibrations.MMSwitch.SwitchKnob

a SpriteReplace to represent the switch knob

◆ SwitchOff

UnityEvent MoreMountains.NiceVibrations.MMSwitch.SwitchOff

the methods to call when the switch is turned off

◆ SwitchOn

UnityEvent MoreMountains.NiceVibrations.MMSwitch.SwitchOn

the methods to call when the switch is turned on

Property Documentation

◆ CurrentSwitchState

SwitchStates MoreMountains.NiceVibrations.MMSwitch.CurrentSwitchState

getset

the current state of the switch

The documentation for this class was generated from the following file:

F:/Github/Store/NiceVibrationsStore/Assets/NiceVibrations/Demos/_Common/Scripts/UI/MMSwitch.cs
